Calculation with OPUS

Use the core of our CAM system to quickly and easily calculate your costs directly from the CAD model

OPUS Calculation with CAD files



Optimise your work preparation and speed up the calculation process with our solution ... let clever bits work for you!

OPUS closes the gap between planning and production. With our graphically interactive calculation software, you can access CAD data as early as the quotation phase.



Calculation with OPUS



  • Strategy toolbox
  • Transfer of the calculation results to OPUS-CAM
    • Features, tools etc. that have already been created do not need to be redefined for CAM programming
  • Freely definable basic system settings
  • Clear report with the most important information
    • Can be customised to customer requirements
  • Ergonomic operation
    • Context menus at the relevant points
    • Few switches
  • Intuitive user interface
    • Tree structure
      • Results
        • Times
        • Costs

OPUS calculation modules

Thanks to the modular structure of OPUS, you only need the modules for the manufacturing processes that you actually need.

OPUS calculation workflow

for the example milling / drilling



  • Create project
  • Adjust settings
    • Machine
    • Material
    • Quality
  • Import of 3D drawing (CAD model)
  • Create blank
    • Enveloping cuboid
    • Enveloping cylinder
    • Convex envelope
    • 3D drawing (CAD model)
  • Time and costs are calculated directly
    • Metal removal rate

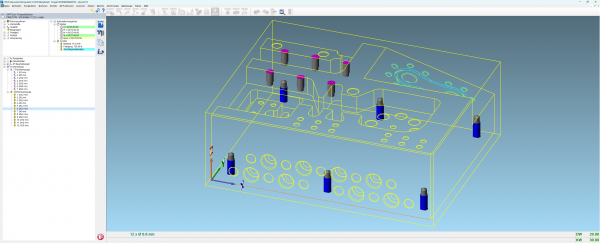

  • More precise calculation through feature recognition
    • Milling
    • Drilling



Component Calculation fast and effective to your calculation

If you would like more information about our calculation module, simply contact us ...
